DM138 Power roller

Product Description

DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power Conveyors

Features Overview of DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller

The DM138 400V 50Hz motor drum belt conveyor roller offers high efficiency, smooth operation, and robust performance for medium-load conveyor systems, making it ideal for industries such as food processing, airport baggage handling, and postal sorting.



Function of DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller

The DM138 400V 50Hz Motor Drum Belt Conveyor Roller is designed to provide a powerful and reliable drive solution for medium-load belt conveyor systems. Its primary function is to efficiently transfer torque from the motor to the conveyor belt, enabling smooth and consistent material handling across various industries. The roller's oil-cooled motor ensures optimal heat dissipation, which increases the system's lifespan and reduces the need for frequent maintenance.



Equipped with precision-machined gears and an antislip surface, the DM138 ensures low-noise operation and stable performance, even in demanding environments such as food processing, airport baggage handling, and postal sorting. The drum motor's customizable speed and length make it adaptable to different operational needs, while its IP66/67 protection rating guarantees reliability in dusty or wet conditions.



Overall, the DM138 serves as a versatile and energy-efficient component, offering high torque and smooth operation to keep conveyor systems running efficiently and with minimal downtime.





Application of DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller

  1. Security screening machines (airports and stations)

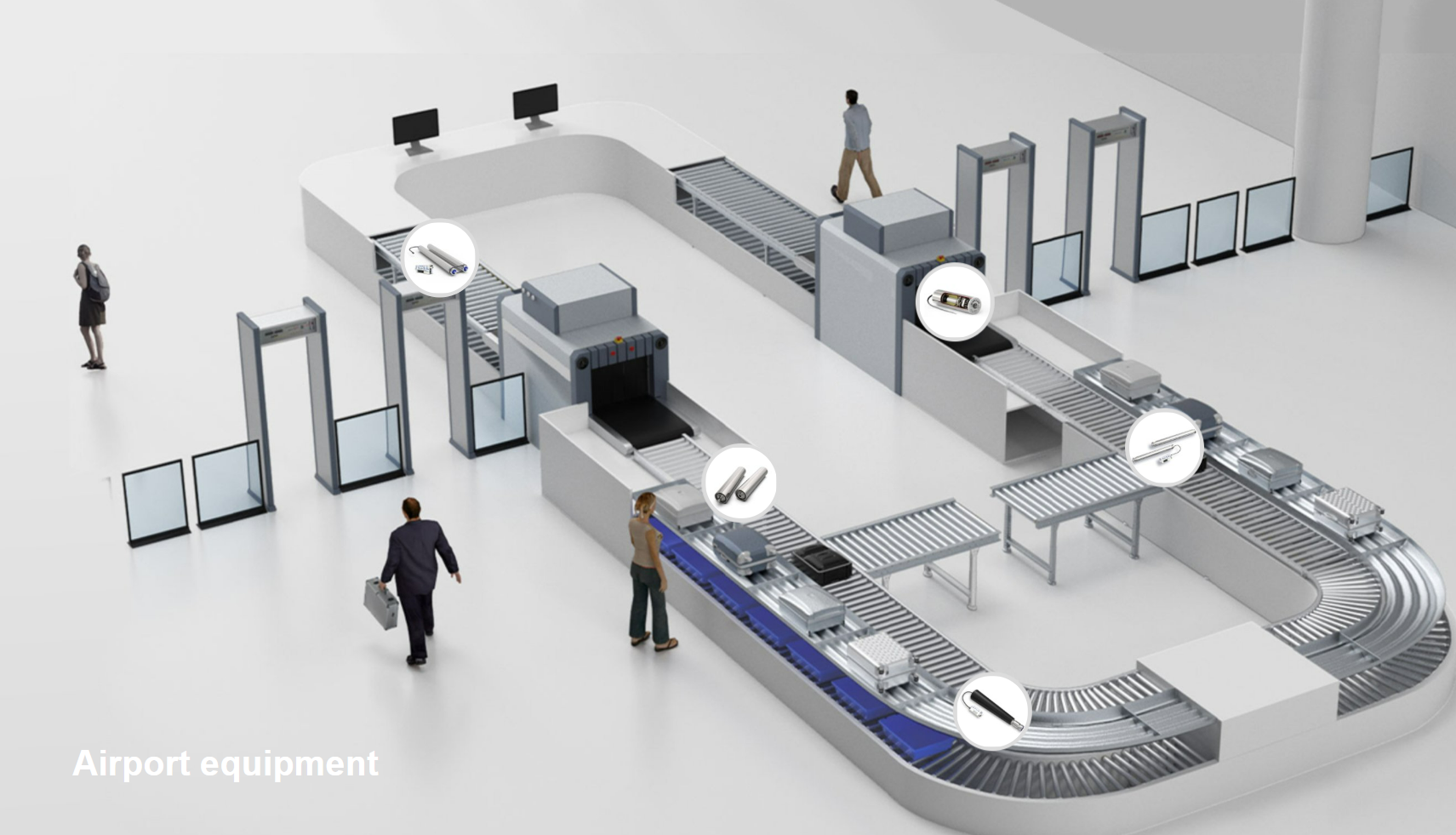

  2. Airport baggage handling system

  3. Packaging machinery

  4. Power belt scale

  5. harmaceutical Industry

  6. Food processing industry

  7. Meat processing industry

  8. Postal sorting

  9. Belt conveyor

  10. Sorting and conveying equipment for agricultural products

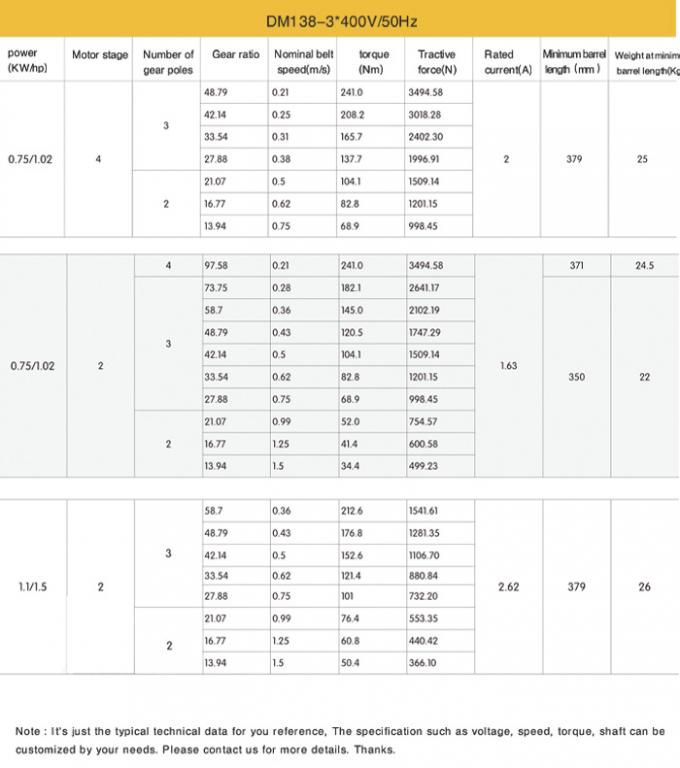

Technical Parameters of DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller



DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller
Application :DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller for High Power Conveyors, Security screening machines, Meat processing industry, Voltage400V
Power1.1KWDiameter138mm
Motor frequency50HzMaterial304 stainless steel, Galvanised carbon steel
Cylinder lengthCustomisedLinear Velocity0.1m/s~ 1.5m/s
GearHigh alloy steel gearFunctionTransport bulk and finished goods
FunctionCompact structure, high power, high sealing performance, low energy consumption, high mobility, strong physical properties, powerful driving device, low noise



DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power ConveyorsDM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power ConveyorsDM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power ConveyorsDM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power Conveyors



Feature Picture of DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller

DM138 Voltage 400V 50Hz Motor Drum Belt Conveyor Roller For High Power Conveyors
